Our Products

Industrial & Agriculture Usage. Various discharge & pipe sizes are available, Depending upon the requirement the correct model can be chosen.
Slow Speed Pumpsets for large volume transfer is available - 7.5 HP & 10 HP, with low total head for paddy field application.

• Monobloc are designed to withstand voltage drops to 320 volts.
• Better insulating materials are used so that monoblock can with stand high temperature rise.
• High operating efficiencies of the monoblock result into greater water discharge rate and lower power bills.

Specifications

• Head Range: Up to 22 Meters
• Discharge Range: Up to 72.5 LPS
• Power Ratings: 2.2 to 7.5 kW (3 to 10 HP)
• Three Phase

Multistage Pumps - Single Phase & Three phase available

• Air Conditioning and Refrigeration System
• Cooling Towers
• Clear Water Handling at High Pressure in Industries.
• Firefighting System
• Industrial Pressure Boosting

Specifications

• Head Range: Up to 98
• Discharge Range: Up to 20 LPS
• Power Ratings: 3.7 to 15 kW (5 to 20 HP)
• Voltage Range: 300 to 440 volts (three phase)
• Insulation: B / F class
• Protection: IP 44 / IP 55

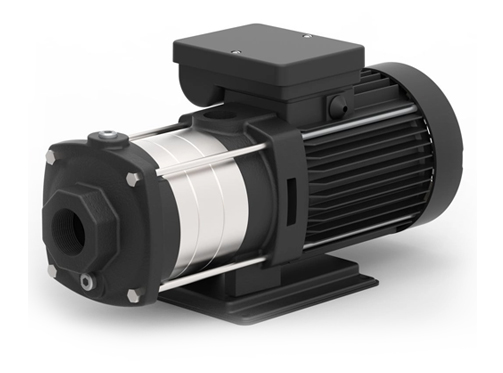

The MH series are cost competitive, horizontal, multistage, non-self priming, close coupled , centrifugal pumps.

• The pump casing shall be of Cast Iron grade FG 260 as per IS 210 / ISO 186 and have axial suction and radial discharge port.
• The pump shall have fabricated closed type impellers and bowl diffuser casings made out of AISI 304 Stainless steel sheet metal.
• The Pump shaft sealing shall be by mechanical shaft seal of Carbon/Ceramic/NBR/AISI 304 construction suitable for 10 bar pressure rating and water temperature from 0 to +90 deg. C.

Specifications

• Flow Range: 0.5 - 28 M³/H
• Head Range: Up to 77 Meters
• Rating: 0.37 KW to 7.50 KW
• Rated Speed: 2900 RPM

Both Monobloc & Submersible pumps slurry Pumps, Grinder Pumps

• Removing Stagnant Water from Basement/Underground Parkings/Garages, etc.
• Draining Accumulated Storm Water during Monsoon
• Emptying Water Tanks and Pits for Cleaning
• Draining Waste Water from Kitchens, Hotels, Clubs, etc.
• Removing Surplus Water from Sumps

Specifications

• Head Range: Up to 12 metres
• Discharge Range: Up to 330 LPM
• Power Ratings: 0.75 to 1.8 KW (1 to 2.5 HP)
• Voltage Range: 180 to 240 volts (single phase)
• Protection: IP 68
• Insulation: F class (SW); B class (BW)
• Cable Length: 9.5 Metres
• PH Value: 4 to 10
• Liquid Temperature: 40^o C

When your suction head is more than 7.5 Mtrs we advise to go for Submersible pumps. We have wide variety of submersibles in stock to cater to needs of our customer based on Quality & Price. Studying the customer site requirement , the apet model is selected for his/her usage. Power rating from - 0.5 to 30 HP Three phase.
Single Phase - 0.5 to 2 H.p is available with various pipe sizes. Total head from – up to 65 Mtrs. Different types of MOC is available for the submersible pumps. Body - SS Body, CI Body Impeller – Noryl, CI, SS, Bronze
Based on the different combination we stock from the Most economical type to Most durable type with highest warranty available in the market.

• Pumpset shall be designed to withstand voltage drops to 320 volts.
• It has well designed sleeve and thrust bearing of adequate capacity for longer life.
• High operating efficiencies of pumpset result into high water discharge rate and lower power bills.
• All components are precisely machined on modern precision machine tools to give you years of reliable operation.
• Stator and rotor of the monoset are vacuum impregnated with synthetic varnish and epoxy coated for corrosion resistance.
• All rotating components are dynamically balanced to ensure long bearing life and vibration free smooth operation.

Specifications

• Flow Range: Up to 310 M³/H
• Head Range: Up to 72 Metres
• Rating: 0.37 KW & 22 KW
• Rated Speed: 2900 RPM

Openwell Submerisble Pumps Vertical and Horizontal types are available

For better we can segregate the type bore wells pumps as Home / Commercial use. Here we have same h.p motor with different stage of impeller. Type of impeller gives different head range as well as water output. We help our customers in selecting correct Borewell by studying the site conditions.

Commercial Application

• Bore size : 4 inch, 6 inch, 7 inch, 8 inch, 10 inch & 12 inch
• 4 & 6 Inch Bore size have both the Water & Oil cooling options
• Single & Three phase options available depending upon the H.P selected.
• We have models of bore well pumps which can be used both vertical as well as horizontal installation
• This options can be used in Sump tanks / Ponds to pump water to high head. These borewell submersible pumps replaces same H.P Monobloc pump with reduced working time to fill the same amount of water. In some cases even 50% time reduction is achieved.

Specifications

Home Use

• 0.5 h.p to 2 h.p – Single Phase
• 40 mts to 150 Mts Head
• 3” Bore & 4“ Bore Pumps
• Type of cooling – Water / Oil

Used in place with depth more than 10mtrs and availability of water is less. 1.0 & 1.5 H.P single phase models are available. We have Jet pump with can be fixed on top of Tube wells. Mainly used in Alappuzha District.

• Domestic Water Supply
• Water Supply to Overhead Tanks
• Construction Site
• Gardens/Fountains
• Lawn Sprinklers

Specifications

• Depth to low water level: Up to 48 metres
• Capacity: Up to 3,600 LPH
• Power Rating: 0.37 to 1.1 kW (0.5 to 1.5 HP)
• Voltage Range: 180 to 240 Volts (Single Phase)
• Insulation: B Class
• Protection: IP 44
• Well Size: 50 mm to 115 mm

Again we offer different types of pumps - To give water pressure for your washing machine only we have solution. Make sure your rain shower works properly – we have the solution. From single tap to entire building we can support your needs.

• Bathroom Showers
• Consistent pressure at multi outlets
• Washing machine, Gas Geyser
• Pressurised washing of vehicles
• Kitchenware washing

Specifications

• Head Range: Up to 28 meters
• Discharge Range: Up to 2050 LPH
• Power Rating: 0.37 kW (0.5 HP)
• 2 Pressure Range: Up to 2.4 kg/cm
• Voltage range: 180 to 260 Volts (Single phase)
• Insulation: B Class
• Protection: IP 44
• Tank Size: 2 Litres

Twin Booster set consist of two identical pumps connected in parallel and mounted on a common base plate with a control cabinet for automatic control and protection of the booster system.

• The pump casing shall be of Cast Iron grade FG 260 as per IS 210 / ISO 186 and have axial suction and radial discharge port.
• The pump shall have fabricated closed type impellers and bowl diffuser casings made out of AISI 304 Stainless steel sheet metal.
• The Pump shaft sealing shall be by mechanical shaft seal of Carbon/Ceramic/NBR/AISI 304 construction suitable for 10 bar pressure rating and water temperature from 0 to +90 deg. C.
• The pump shall be close coupled with a totally enclosed fan cooled type, 2900 rpm Induction motor with F class insulation, S1 duty and IP55 protection. 1 phase, 230 volts, 50 Hz (Standard Supply), 3 phase, 415 volts, 50 Hz.
• The Systemshall be factory assembled and tested and is supplied with Hydro-Pneumatic pressure tank.
• All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.

Specifications

• Flow Range: Up to 28 M³/H
• Head Range: up to 82 Metres
• Rating: 0.37 to 1.50 KW
• Rated Speed: 2900 RPM

Booster sets consist of 2 to 4 identical vertical multistage (LCR) pump mounted in parallel on a common base frame, control cabinet with motor protection and integrated LE 1000 series controller.

• The pumps shall be non-self-priming, vertical multistage centrifugal pumps. The pump consists of a base and a pump head. The chamber stack and the outer sleeve are secured between the pump head and the base by means of tiebolts. The base has suction and discharge connections on the same level (in-line). All pumps shall be equipped with a maintenance-free mechanical shaft seal.
• Built up on a common base frame. The pumps are fixed to the base frame by means of bolts.
• The pump shall be close coupled with a totally enclosed fan cooled type, 2900 rpm Induction motor with F class insulation, S1 duty and IP55 protection, 3 phase, 415 volts, 1 phase, 230 volts, 50 and 60 Hz power supply.
• A pressure switch or a level switch at the suction side can be used as dry-running protection. When the water level or pressure has been restored, automatic or manual resetting is possible.
• All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.

Specifications

• Flow Range: Up to 232 M³/H
• Head Range: up to 120 Metres

We advise these pumps where the customer is having low yield for their Borewells. 2 Types of Compressor pumps are available - Belt Type - Compressor run by Motor/ Engine via Belt & Monobloc Type. Range - Single Phase model 200ft to 600Ft. Three Phase model - 3 HP, 5 HP

• Available in two type Twin stage & single stage.
• Lower operation temperature.
• Vibration absorption.

Specifications

• Available 1.0 to 2.0 HP
• Head range upto 180 M
